PAVING ROADS IN THE VILLAGES OF AL-OSAJAH, KUREEDY, ARFILA, AL-SAD, AND AL-SAIL / QAYYARAH DISTRICT IN NINEVEH GOVERNORATE

Scope of work:-

AL KHATAB AL MUTAHIDA Co. had been contracted with (Rural Development Department - Nineveh Governorate) to paving roads in the villages of Al-Osajah, Kureedy, Arfila, Al-Sad, and Al-Sail / Qayyarah district in Nineveh governorate according to according to the contract requirements and BoQ.

The contract contains the following activities:

1- Removing all the damaged asphalt layers, all rubble and debris to a dump site approved by the local authorities.

2- Supply of materials, tools, machineries and manpower for the work of cutting and burial with clean soil by layers with spreading and compacting by at least (95%) and providing special levels for drainage with lateral slope (2-6%).

3- Supply of materials, tools, machineries for laying two layers under the foundation (Sub-base Type A) with spraying and compaction not less than (95%) and with a total thickness of no less than (30 cm) two layers.

4- Supply of materials, tools, machineries and manpower for paving by (Stabilizer coarse) thickness (10 cm) With spraying (Prime coat) at 1.25 l / m2, using crushed gravel within the mixture.

5- Supplying, spreading and compacting sub-base thickness (20 cm) with spreading and compaction not less than (95%) with lateral slope (2-6%).

6- Fixing the shoulders of the road by using (Sub-base Type B) thickness (10 cm) and compaction not less than (95%) with lateral slope.

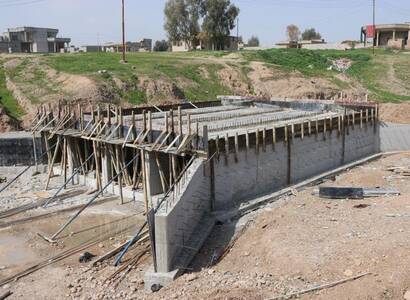

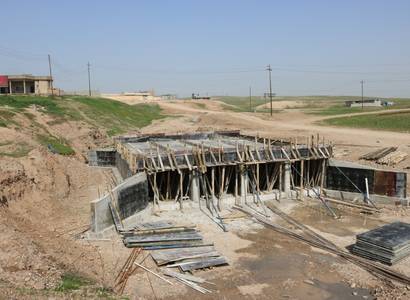

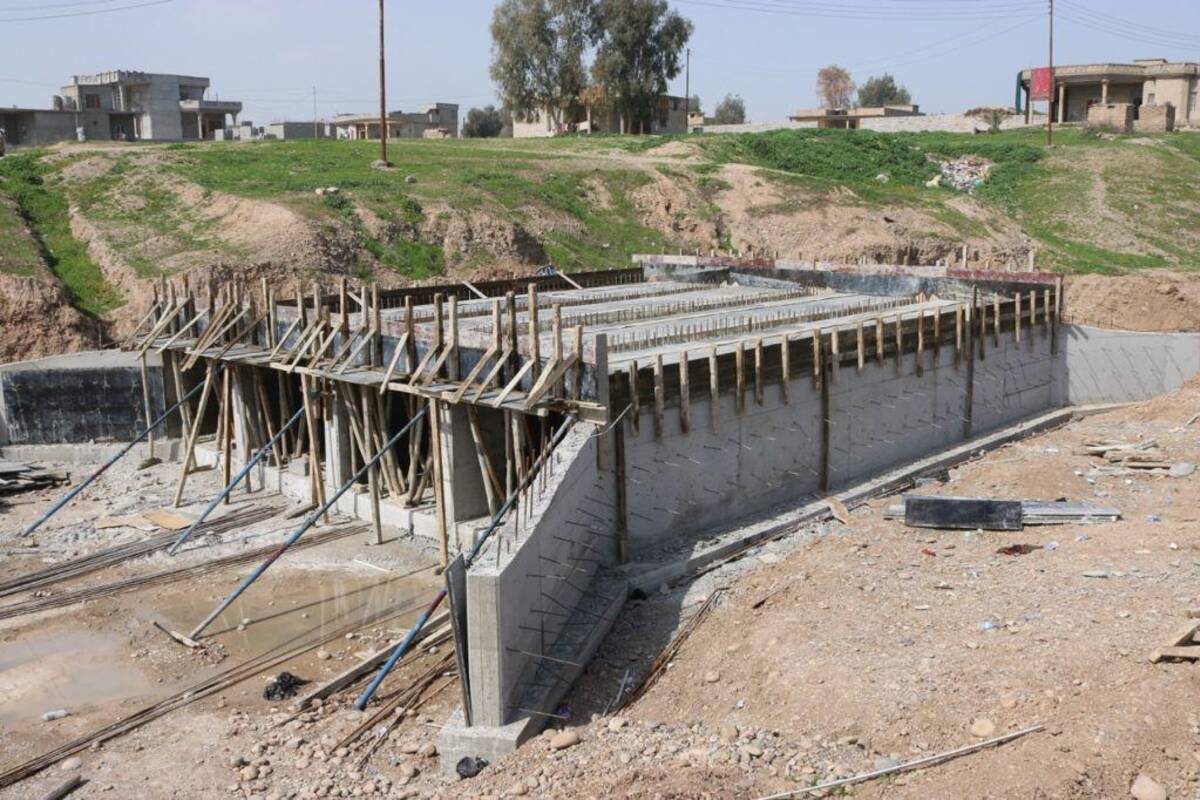

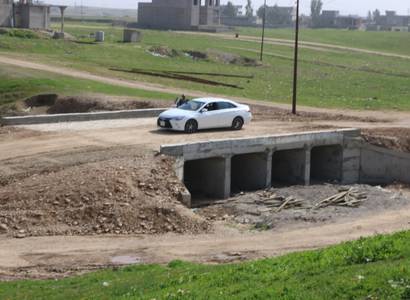

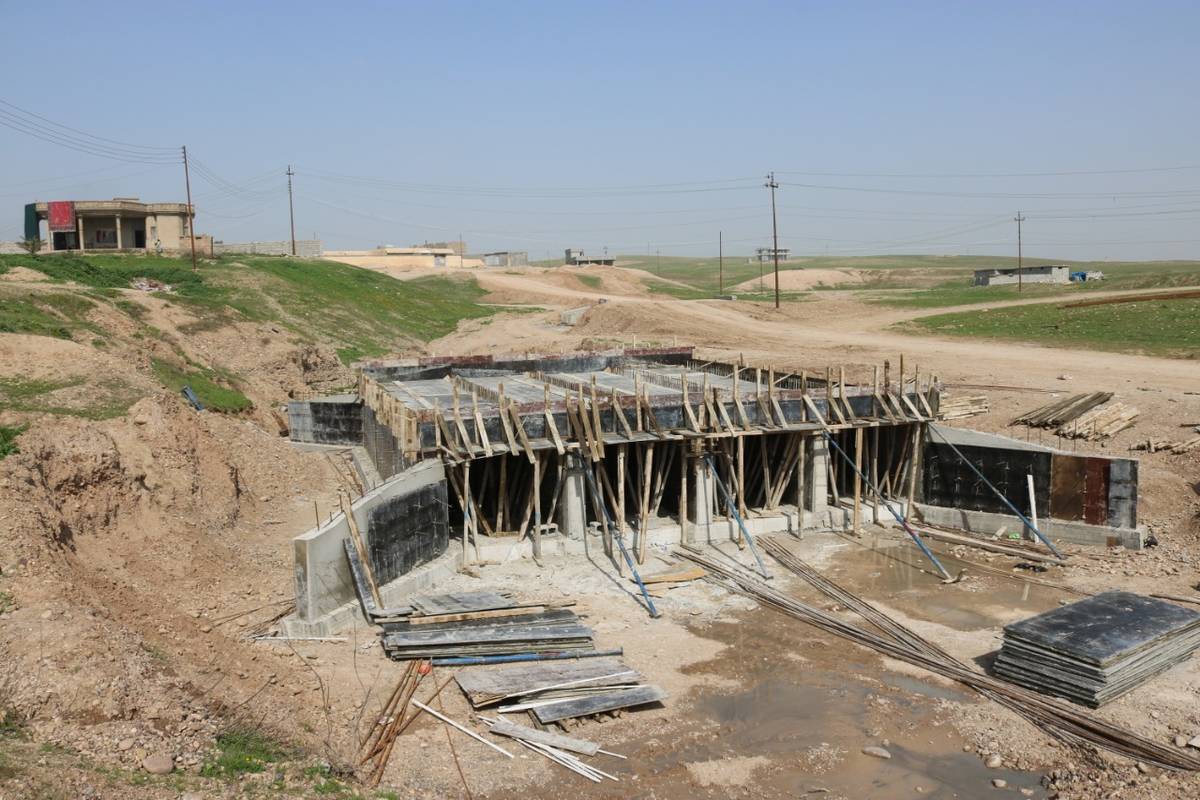

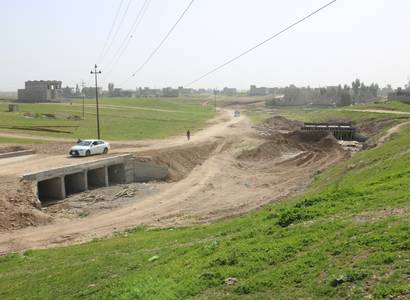

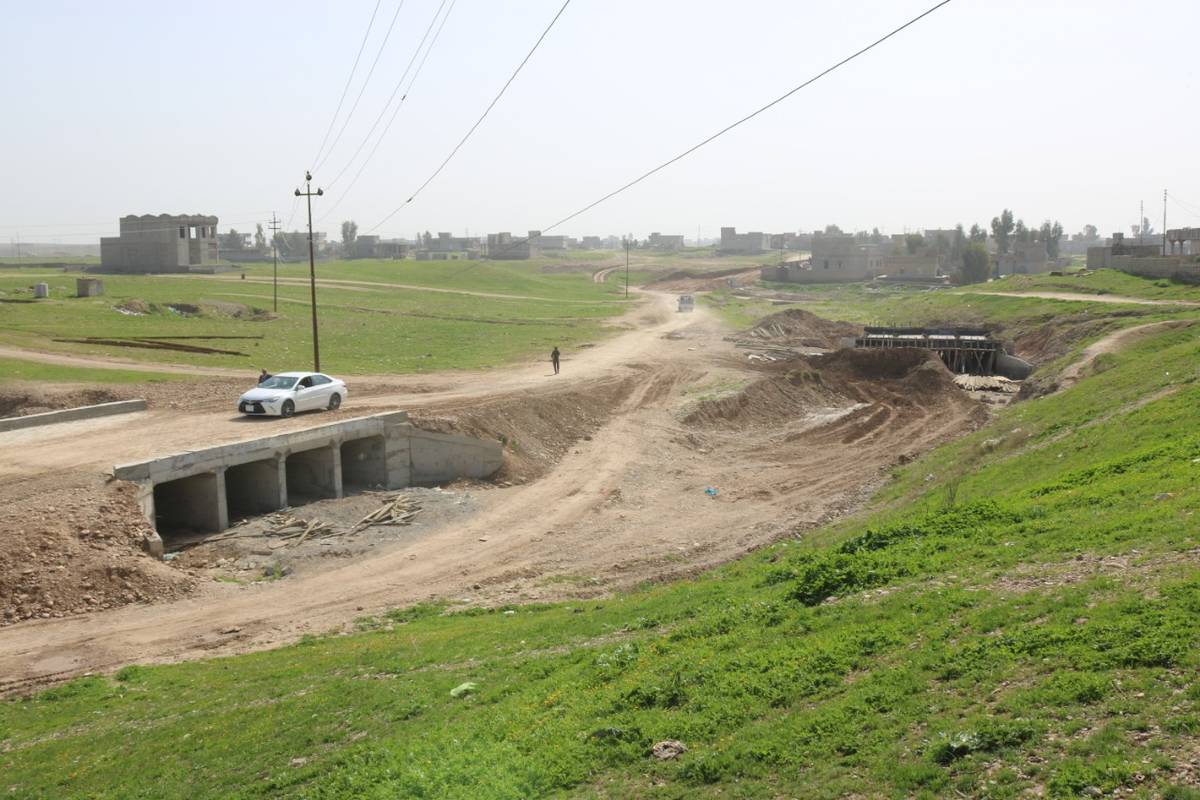

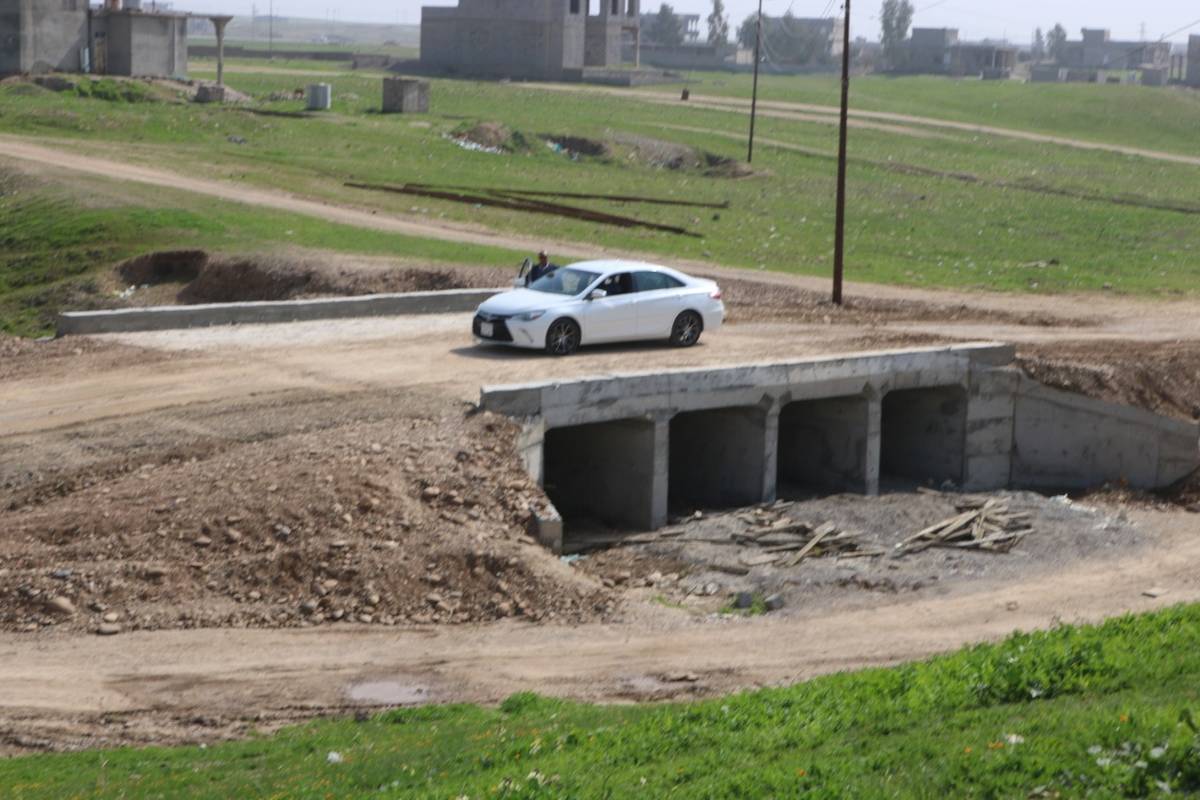

7- Implement Quadruple culvert box with dimensions (ft 7*6), implement double culvert box with dimensions (ft 5*5), single culvert box with dimensions (ft 5*7) from reinforced concrete D20 and implement binary culvert pipe diameter (1 m) encapsulated by concrete type (DX 37,5).

All requirements according to Iraqi roads and highways technical specifications

Photos
